Ordering
Order with confidence from some of the best names in the business
PileupDX – EU (non-UK)
If you are in the EU and prefer to buy from inside the EU, no problem. Contact Bjorn and the team.
View on PileupDX.com
ML&S – exclusive UK dealer
ML&S can also ship to EU DDP – all fees and taxes handled for a seamless transaction.
View on hamradio.co.uk
DX Engineering – North & South America
Exclusive dealer for North and South America.
View on DXEngineering.comWhat’s in the box?

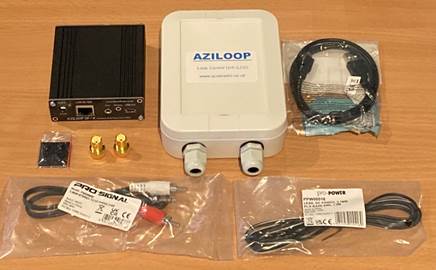

Aziloop is shipped in an F5 size (8″ x 6″ x 4″) package. Shipment comprises the DF-X CIU and DF-72 LCU units together with a DC power lead, USB cable, 3.5 mm to phono AUX I/O cable, 2 x SMA to BNC adapters and four adhesive feet for the CIU, two LCU pole mount adapters and four cable ties.
What else is needed?
You’ll need to supply your own Windows* 10 or 11 PC and an antenna plus feeder.
*Windows 7 and 8.1 is used by some customers, but we can’t officially support older operating systems that Microsoft themselves don’t. You may need to manually install a USB driver and TTF font when using older operating systems.
The antenna need be no more than a central pole supported by two orthogonal loops of wire acting as guys, together with a ground-stake earth or four wire-radials – ground mounted or elevated. We recommend elevated radials for best performance.
Many antenna arrangements are possible, and the size and shape aren’t critical (within limits of course). All you need is a supply of 24/.2 (24 strand, 0.2 mm) insulated wire or similar, and a central non-metallic pole. You can use the standard K9AY shape and dimensions as a guide or (as we recommend) a scaled down version. The User Guide has all the details.
